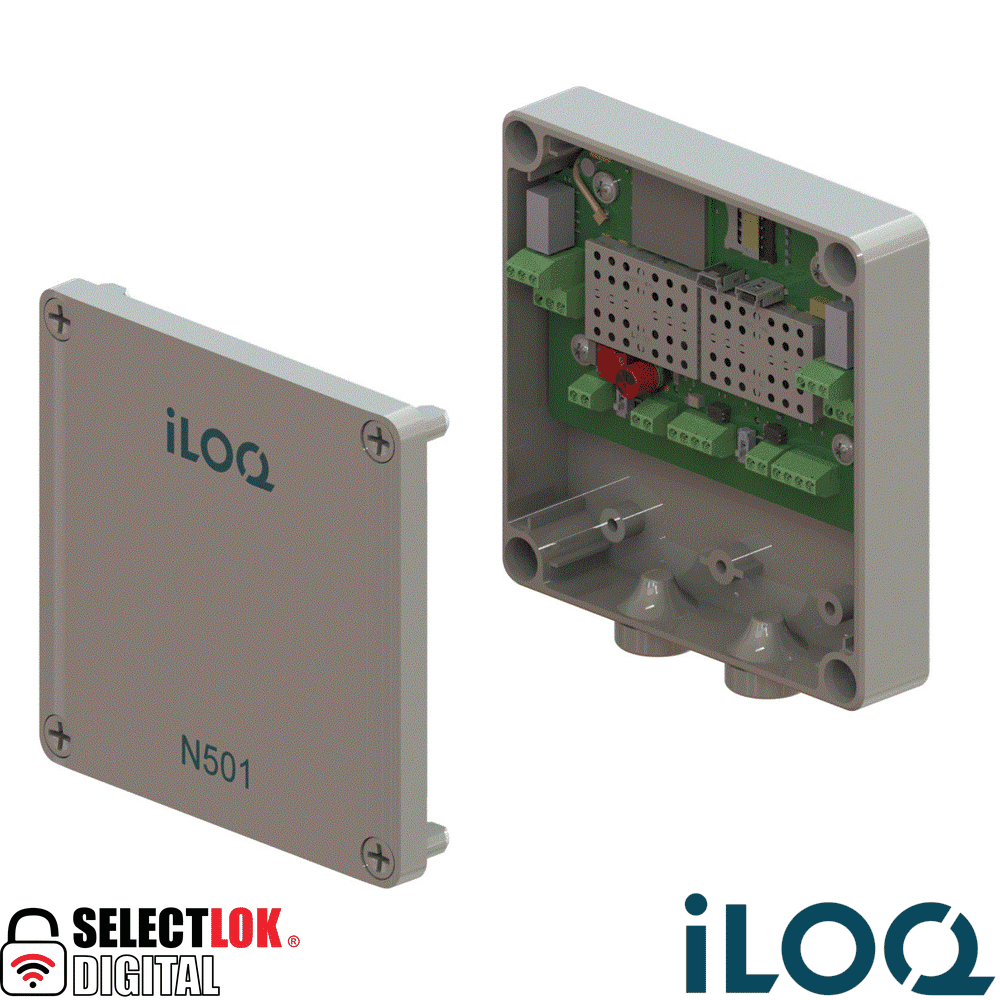

The Standalone Door Module is an independent device located in the vicinity of a door, and it controls devices installed on the door, such as a lock cylinder, an RFID/PIN reader, an electric lock, an electric strike plate, a magnet lock, and so on.The Door Module is connected to the iLOQ S5 server via a pre-installed 4G connection provided by iLOQ. The Door Module has several different use cases.
N501 Standalone Door Module Common Use Cases
- Connecting a calendar-controlled electric lock
- Connecting an RFID reader to control an electric lock
- Connecting an RFID reader to control an alarm system
- Connecting lock cylinders for remote management
- Connecting an RFID/PIN reader to control an electric lock by a key and PIN code combination
- Connecting a code-controlled electric lock
- Updating, sharing and collecting lock and key information such as access rights, time profiles, log events and lists of blocked keys through a D2D network with an RFID/PIN reader N504 or N505
- Door status monitoring
Connections
- CYLINDERS — Cylinder connections for 1 cylinder
- INPUTS - IN 1/IN 2 — Potential-free inputs have varying functions according to the selected operating mode
- INPUTS - EXT — A potential-free contact information for conditional access rights
- READER RS-485 — The reader bus controls the RFID/PIN reader N504 or N505
- RELAY K1 — Relay output for controlling an external device
- FAULT RELAY K2 – To allow fault information to be sent to an external system (option)
- SIM card holder – Pre-installed SIM card for server connection
